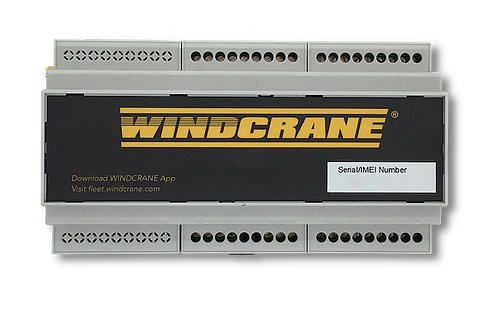

WINDCRANE GSM Datalogger used for live remote monitoring.
Please be advised this is only logger, if you wish to connect it to the sensor , please purchase the sensor separately or connect to the crane's anemometer.
Connect your sensors, power up the system and that is all you need to start getting data. Set up takes typically less than 3 min.
Data is automatically sent every 10 minutes to the Logic Energy web portal, a fully automated and managed remote cloud application.
Fast data - GSM communications every 10 minutes
Set your own alert functions
Limit visits to site by monitoring battery, power supply, GSM and sensor status via remote web portal
Save time with the special quick Wind report function already installed on WIndcrane web portal
No software required on your computer to setup GSM data logger, just a web browser
Robust and long lasting due to very low power consumption

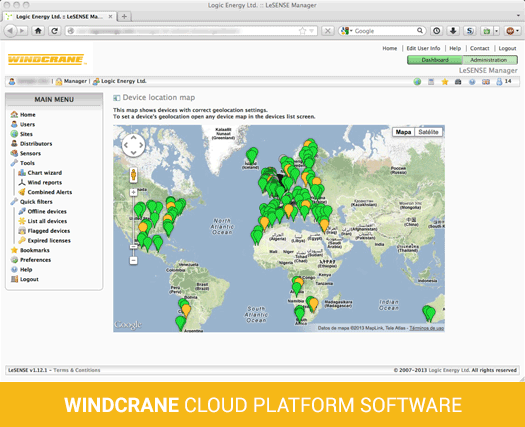

Keep a track of your sites via Geo map location
Every WINDCRANE GSM Wind data logger comes with
Internet GSM data logger
remote web portal access
Sim with 1 year contract included
AC Power supply
Temperature electricals monitoring (hot and cold)
Humidity electrical monitoring that prevents faults
Power monitoring for the cranes' usage, can also help to determine how much power you need for generators etc
Charting, reporting, Site comparison tools
Data export tools in CSV, XLS or un-processed or raw format
Geo Location map of all sites
Remote GSM signal strength indicator
Custom Alerts and logs function
Online configuration of sensors
Centralised data of all your systems & unlimited user access.

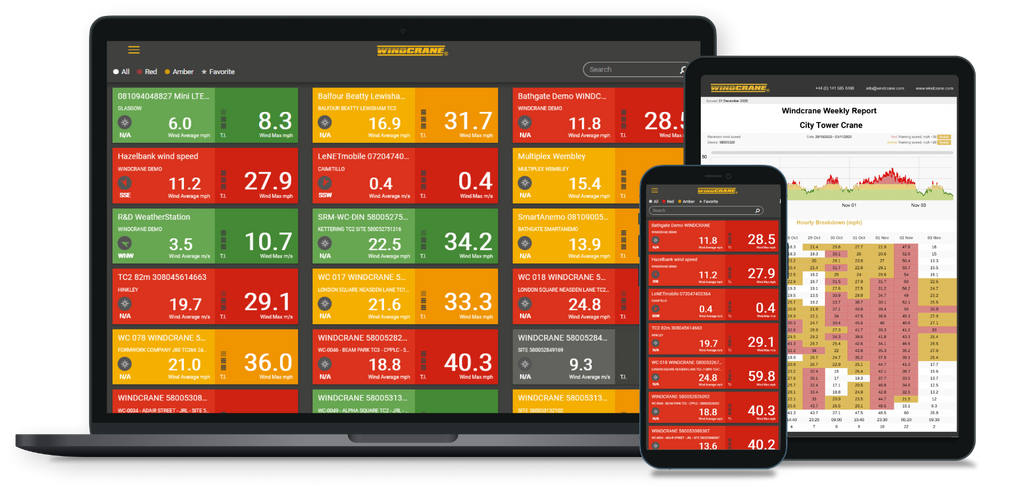

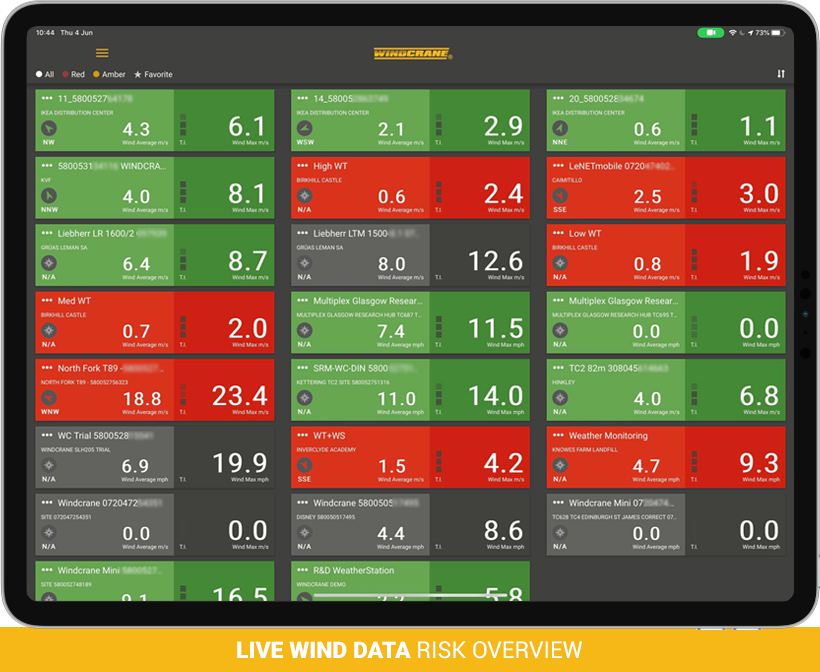

Public live dashboards and mobile access
Up to 2 crane anemometers simultaneously.
Data sampling rate: 1Hz according to IEC61400.
Data resolution: Better than 0.01mph, kph or m/s.
Every 10 minutes with full Average, Max and Turbulence.
Unlimited storage, email alerts and historical data download.
Automatic live Cloud updates using the GSM network.
Power supply: Supplied 12Vdc or 24Vdc Din rail.
Operating temperature: -20 to +70 °C.
Enclosure: DIN rail mounted, 9 module size.
Download WINDCRANE Specs information
Download WINDCRANE GSM information
Connect and stream data to the Internet
Find devices using geo-location
You can find more video tutorials here
