Wind Turbine Speed Sensors

Home Wind Turbine Speed Sensors Page 1 of 1

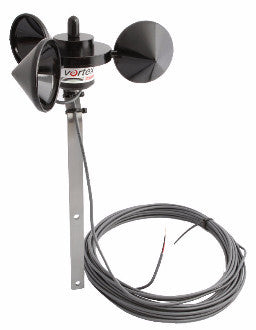

Vortex Anemometer

£88.40

Qty:

Added Add to Cart

Rugged wind sensor handles speeds from 2.3m/s to over 55 m/s. Reed switch/magnet provides one pulse per rotation, with a sapphire bearing to minimize wear. Comes with exterior grade wire. The Vortex wind sensor is great for do-it-yourself projects, replacement, or additional parts.

The Vortex Wind Sensor includes:
- high quality 3-cup rotor pressed on a stainless steel shaft
- rugged Delrin body with bronze and Rulon bushings
- flat aluminum mounting bracket with 2 holes
- reed switch and magnet providing one pulse per rotation
- 10 meter of exterior grade wire
- Converting pulses to wind speed is simple using the following formula: 2.5 mph per Hz (1 Hz = 1 pulse/second) 1.1176 m/s per Hz (1 Hz = 1 pulse/second) View full product details

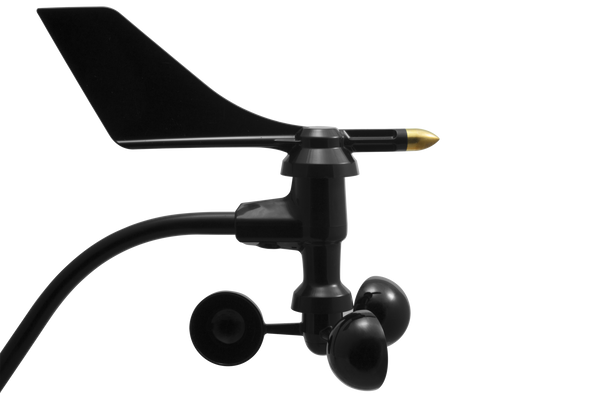

Anemometer & wind direction [Pro-D] £198.40

Anemometer & wind direction [Pro-D]

£198.40

Qty:

Added Add to Cart

This Pro-D Anemometer measures Wind Speed and wind direction when connected to a wind speed data logger like the new WindLogger, WindTracker or our GSM systems.

Pro-D Anemometer comes with wind speed sensor, wind vane and fixings for a 2" pipe (you need to provide wind mast only), 13 meters cable and accessories for installation.

General Specifications:
Sensor Type: Wind Speed - Wind Cups and magnetic switch Wind Direction - Wind Vane and potentiometer
Attached Cable Length: 13m (40ft)
Cable Type: 4-conductor, 26 AWG
Material: Wind Vane and Control Head: UV-Resistant ABS
Wind Cups: Polycarbonate
Anemometer Arm: Black-anodized aluminum
Dimensions: 381mm L x 38mm W x 457mm H
Wind Direction Output:

For more information about the Pro-D anemometer, please download pdf file here

View full product details

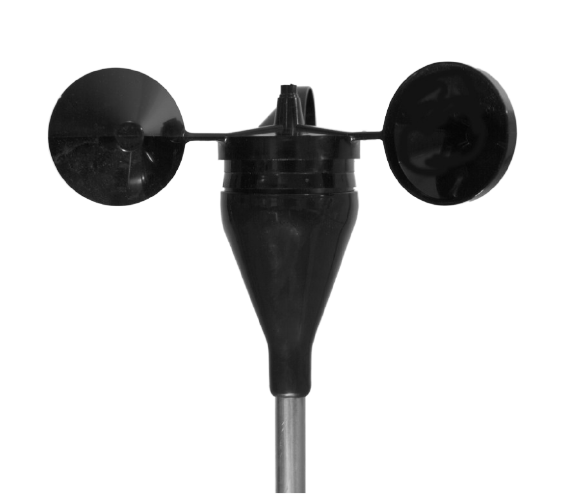

Calibrated anemometer NRG #40C £358.00

Calibrated anemometer NRG #40C

£358.00

Calibration:

Qty:

Added Add to Cart

Constructed of rugged Lexan cups molded in one piece for repeatable performance. Includes calibration certificate.

A four-pole magnet induces a sine wave voltage into a coil producing an output signal with frequency proportional to wind speed. The #40C is constructed of rugged Lexan cups molded in one piece for repeatable performance. A rubber terminal boot is included.

Features
This anemometer is often used for wind resource assessment for wind turbines, they are 1% accuracy and have a resolution better than 0.1m/s to match the IEC-61400-12 standards for wind measurement and wind turbine performance analysis.

The #40C anemometers are manufactured with exceptional quality control meeting new standards- all units are tested mechanically and electronically before shipping.

This anemometer is compatible with our GSM wind monitoring system only

Download more information

View full product details

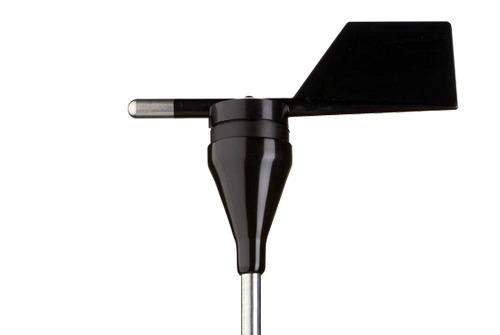

Wind vane NRG #200P £298.00

Wind vane NRG #200P

£298.00

Qty:

Added Add to Cart

This vane is directly connected to a precision conductive plastic potentiometer located in the main body. An analog voltage output directly proportional to the wind direction is produced when a constant DC excitation voltage is applied to the potentiometer. A rubber terminal boot is included.

Features
Sensor type continuous rotation potentiometric wind direction vane
Sensor range 360° mechanical, continuous rotation
Accuracy potentiometer linearity within 1%
Dead band 8° Maximum, 4° Typical
This sensor is compatible with GSM wind site assessment devices

Download more information

View full product details

Class 1 - NRG 40C MEASNET calibrated anemometer £467.00

Class 1 - NRG 40C MEASNET calibrated anemometer

£467.00

Qty:

Added Add to Cart

The NRG Systems Class 1 anemometer is ball-bearing version of the industry-leading NRG #40C anemometer. This wind sensor comes with an individual MEASNET calibration certificate

Sensor type: 3-cup anemometer
Sensor range: 1 m/s to 96 m/s (2.2 mph to 215 mph) (highest tested)
Instrument compatibility: Logic Energy GSM systems only View full product details

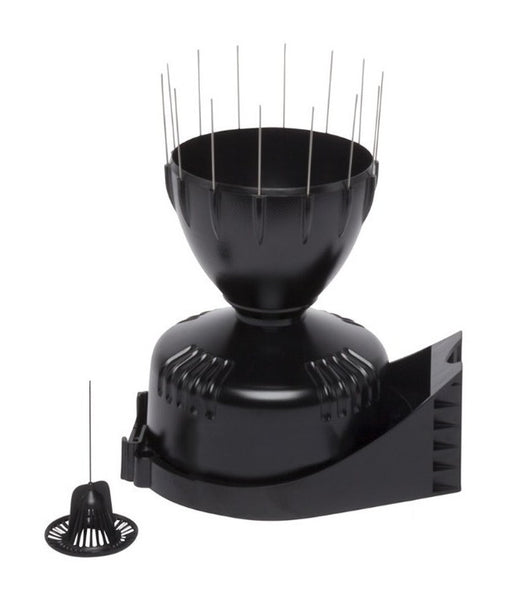

Rain collector sensor £112.00

Rain collector sensor

£112.00

Qty:

Added Add to Cart

Designed to meet the guidelines of the World Meteorological Organization, this self-emptying tipping-bucket design is exceptionally accurate.

Specifications
Comes with 40' (12 m) standard cable.
Rain collector can be user-calibrated for 0.01" or 0.2mm.

Download specifications here View full product details

Pyranometer 2.5 £287.50

Pyranometer 2.5

£287.50

Qty:

Added Add to Cart

This sensor is a silicon-cell pyranometer. It is calibrated to measure total shortwave radiation.
The evaporation of water from soil and the transpiration of water from plant leaves are partly determined by the intensity of shortwave radiation, which is measured in Joules per meter squared per second or Watts per meter squared

Features
Output: 0 to 2.5 V (2.2 V = full sunlight 1100 W m-2)
Input Power: 2.5 to 5.5 VDC
Sensitivity: Custom calibrated to exactly 0.5 W m-2 per mV

Download more information View full product details

Temperature probe £33.00

Temperature probe

£33.00

Qty:

Added Add to Cart

PROBE, NTC, PLASTIC, IP65

Thermistor Type: NTC

Accessory Type: NTC Probe

Lead Length: 1.5m

Operating Temperature Max: +110°C

Probe/Pocket Body Material: Plastic

Resistance Tolerance: ± 1%

This sensor is compatible with LeNETmobile

Download more information

View full product details

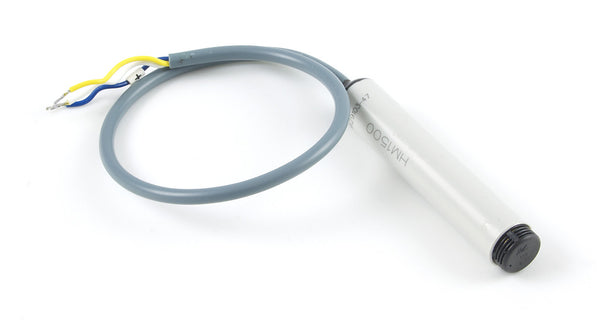

Relative Humidity HM1500 £89.20

Relative Humidity HM1500

£89.20

Qty:

Added Add to Cart

HM1500 is a dedicated humidity transducer designed for OEM applications where a reliable and accurate measurement is needed. Direct interface with a micro-controller is made possible with the module’s linear voltage output.

Features
Small size product
Humidity calibrated within +/-2% @55%RH
Typical 1 to 3.6 Volt DC output for 0 to 100% RH at 5Vdc supply
Suitable for 3 to 10 Vdc supply voltage
Ratiometric to voltage supply from 4.75Vdc to 5Vdc
This sensor is compatible with our internet enabled GSM systems

Download more information View full product details

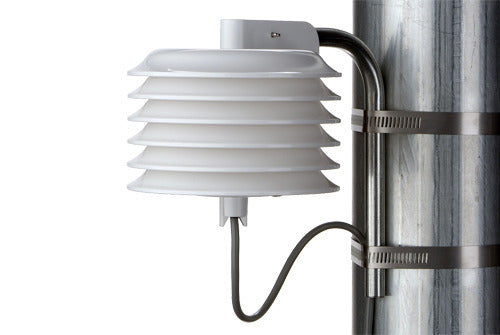

Active Temperature sensor with radiation shield £292.80

Active Temperature sensor with radiation shield

£292.80

Qty:

Added Add to Cart

The #110S temperature sensor is an integrated circuit temperature sensor that provides a high level voltage output signal. This sensor is ideal for collecting temperature data for energy density calculations and monitoring air temperature at remote sites.

The #110S temperature sensor includes an internal reference, amplifiers, and linearization enclosed in a six-plate UV-stabilized radiation shield. This temperature sensor is also an excellent addition for sites where icing may be a possibility.

The universal mounting assembly mounts quickly to any pipe or tower.

We can offer the same sensor with a traceable calibration certificate

Sensor type integrated circuit temperature sensor with six plate radiation shield

Sensor range -40 °C to 52.5 °C (-40 °F to 126.5 °F)

Signal type linear analog voltage

Transfer function Temp = (Voltage x 55.55) - 86.38 °C / [Temp = (Voltage x 100) - 123.5 °F]

Accuracy: offset is +/- 0.8 °C (1.4 °F) maximum / nonlinearity is +/- 0.33 °C (+/- 0.6 °F) maximum / total error +/- 1.1 °C (2 °F) maximum

Output signal range 0 V to 2.5 V DC

Supply voltage 4 V to 35 V DC

Operating humidity range 0 to 100% RH

This sensor is compatible with our GSM systems

Download more information

View full product details

Atmospheric pressure £346.32

Atmospheric pressure

£346.32

Qty:

Added Add to Cart

This product has a longer than usual delivery lead time, please contact us before if the order is urgent.

-------------------------------------------------------------------------------------------------------------

IMP-LR - Low range industrial pressure transmitter

Pressure Range (mbar): 600 mbar Abs to 1100 mbar Abs

Output: 0 - 2.5V dc

Accuracy (Combined NL&H): <±0.25% / FS

Accuracy (Thermal Zero Shift): <±0.04% / FS / °C

Electrical Connection: Large Plug & Socket (GDM3009, DIN43650)

Process Connection: G 1/4" male DIN 3852

Cable Length (in mtrs): 0.5m

Diaphragm Material: Aluminium Oxide 96% (Ceramic Al2O3)

Process Connection Material: 303 Stainless Steel

Media Temperature: -20 to +135°C

Operating Temperature: -20 to +80°C

Supply Voltage: 6 - 15V dc

Item is supplied calibrated

This sensor is compatible with our GSM wind monitoring systems

Download more information

View full product details

Anemometer THIES First Class - ADVANCED from £596.00

Anemometer THIES First Class - ADVANCED

£596.00

Certificate:

Qty:

Added Add to Cart

This anemometer has been designed for the acquisition of the horizontal component of the wind speed in the field of meteorology and wind energy measuring technology. The anemometer meets all requirements of IEC 61400-12-1 for an Instrument of the accuracy class 0.5
Special characteristics are minimal over-speeding, low starting value and according to Accuwind (testreport1), probably one the best sensors in the market when it comes to measuring wind speed.
