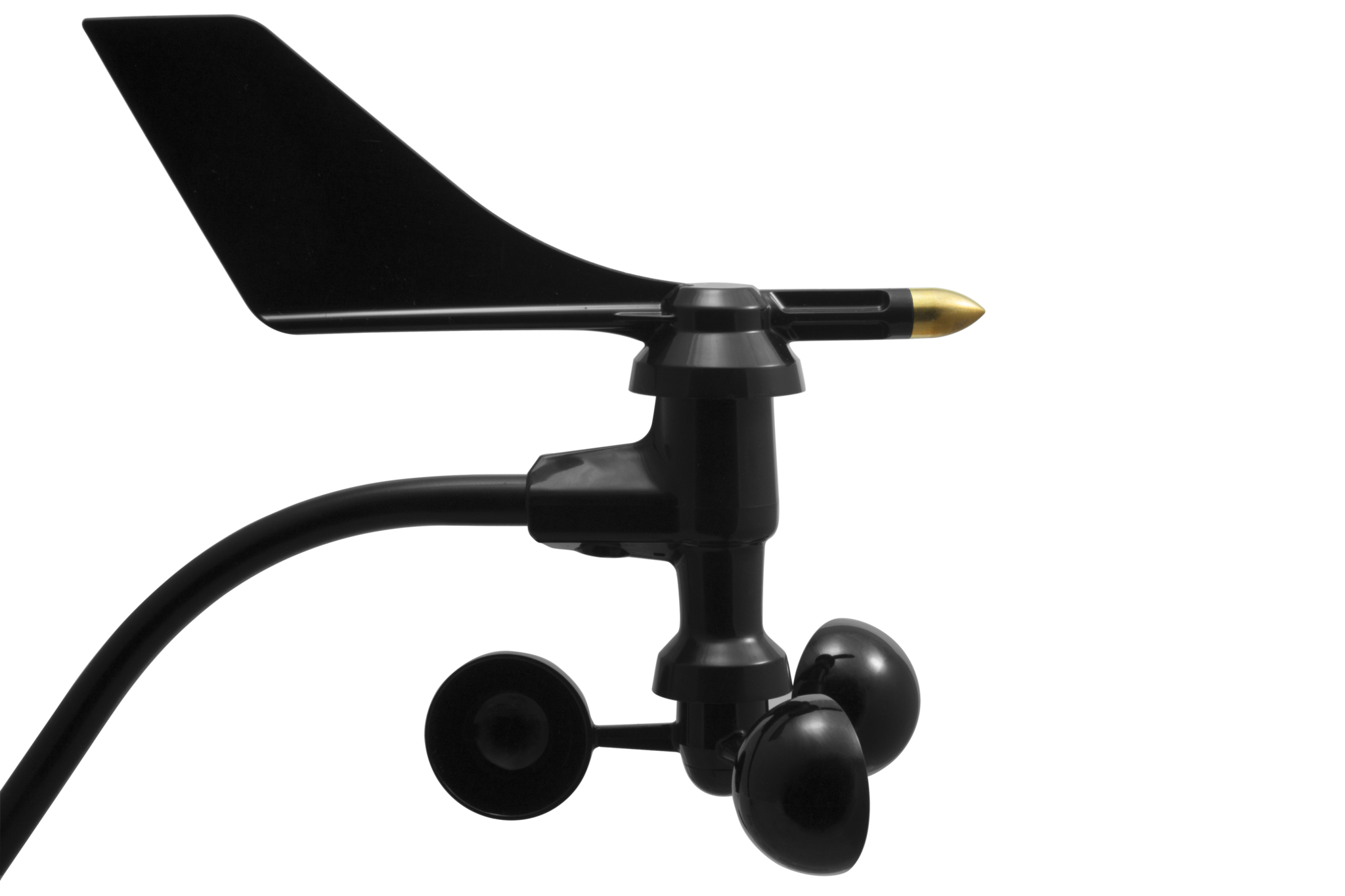

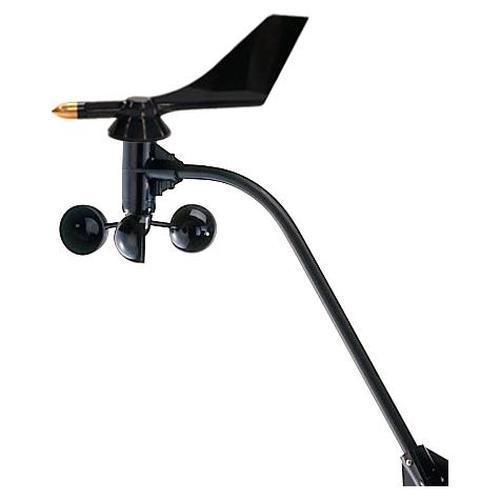

This Pro-D Anemometer measures Wind Speed and wind direction when connected to a wind speed data logger like the new WindLogger, WindTracker or our GSM systems.
Pro-D Anemometer comes with wind speed sensor, wind vane and fixings for a 2" pipe (you need to provide wind mast only), 13 meters cable and accessories for installation.
Sensor Type: Wind Speed - Wind Cups and magnetic switch Wind Direction - Wind Vane and potentiometer
Attached Cable Length: 13m (40ft)
Cable Type: 4-conductor, 26 AWG
Material: Wind Vane and Control Head: UV-Resistant ABS
Wind Cups: Polycarbonate
Anemometer Arm: Black-anodized aluminum
Dimensions: 381mm L x 38mm W x 457mm H
Wind Direction Output:
Rugged wind sensor handles speeds from 2.3m/s to over 55 m/s. Reed switch/magnet provides one pulse per rotation, with a sapphire bearing to minimize wear.... View full product details
Constructed of rugged Lexan cups molded in one piece for repeatable performance. Includes calibration certificate.A four-pole magnet induces a sine wave voltage into a coil... View full product details
This vane is directly connected to a precision conductive plastic potentiometer located in the main body. An analog voltage output directly proportional to the wind... View full product details
