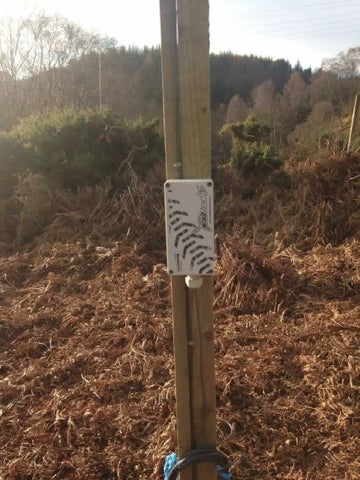

Data logger Windlogger

£380.00

This product will be despatched within 10-15 working days

---- QUESTIONS AND ANSWERS ----

Category: anemometer, datalogger, LeWL wind logge, LeWL windlogger, Wind, Wind measurement

Overview
Downloads
Specifications
Reviews

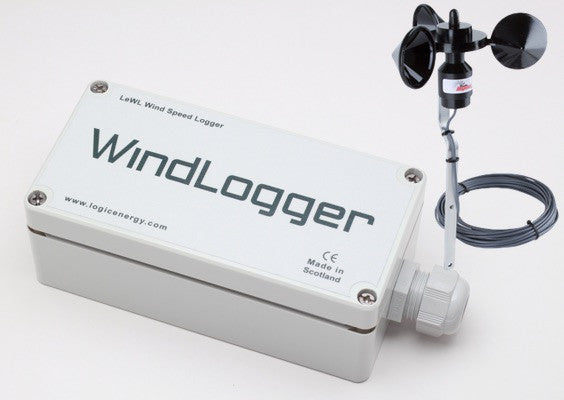

The new LeWL WindLogger has been manufactured since 2008. We have sold thousands of these little wind data loggers all over the world and they have an excellent reputation for their stability, accuracy and endurance.

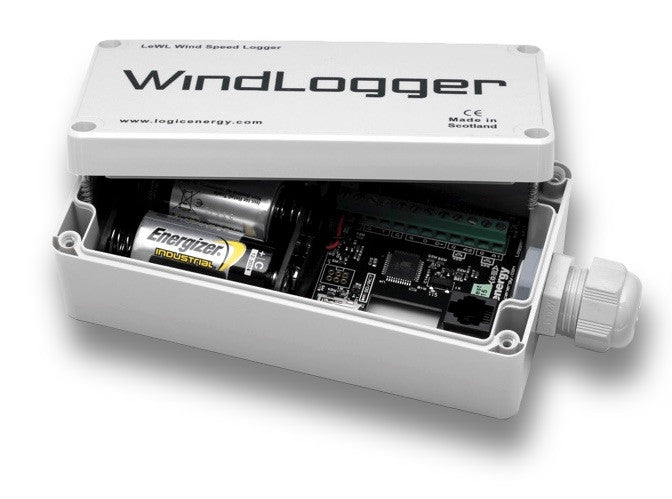

The new WindLogger has been re-designed with major enhancements, thanks to the small wind enthusiastic community. We have listened to their feedback and have made several improvements: Simpler than ever installation, just plug the Pro-D anemometer into the internal 6P4C connector. If you use any other type of anemometer, that is ok too. You can connect it directly to its internal sensor input connection block. Automatic anemometer detection system. The new WindLogger will let you know if there's an anemometer connected and working before leaving site.

Option for external temperature probe

Built-in battery monitor

Outstanding battery life up to 1 year at 1 minute logging interval or 2 years at 10 minutes intervals

Designed in Scotland : Manufactured in the UK
Please Note: Price does not include VAT. For UK orders VAT is calculated at checkout. International orders are not subject to VAT.
Download manual and quick guide here or see F.A.Q. for WindLogger and videos
Specifications

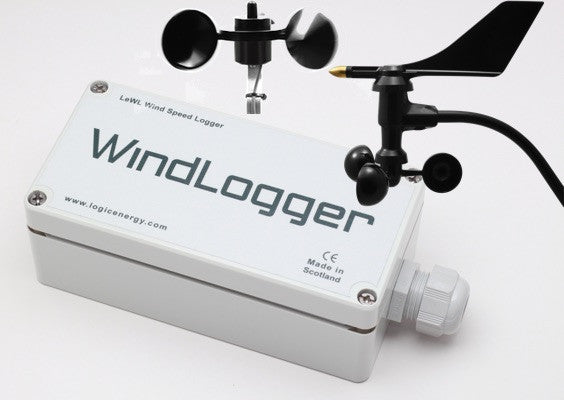

- Record wind speeds from up to 2 anemometers simultaneously - Average wind speed, gust wind speed and standard deviation (turbulence) and wind direction
- Input for external temperature probe

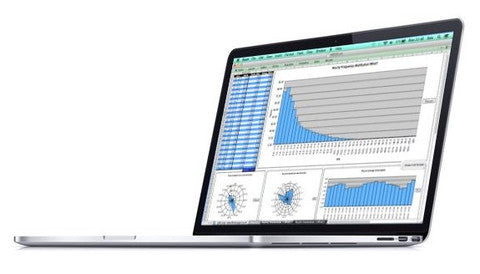

- Up to 1 year of battery life recording 1 minute data or up to 3 years battery life recording in 10 minutes intervals. (10 seconds available for testing purposes)> - Time-stamped data recorded to microSD card in standard CSV format for import into Excel or wind analysis software. Includes all sensor values, plus battery status. - Simple analysis tools included. (excel template for your manipulation or Java app)
- Fully weatherproof IP65 rated enclosure

SD card memory storage
- Files in standard CSV ASCII format, archived into monthly files
- Records average, standard deviation and maximum values
- Data recorded with date and time stamp
- microSD flash card FAT32
Four sensor inputs
- Log two anemometers at once (2 digital inputs)- Supports dry contact (volt-free) switch, Hall effect switch, open collector or 3V logic level signal Wind speed input

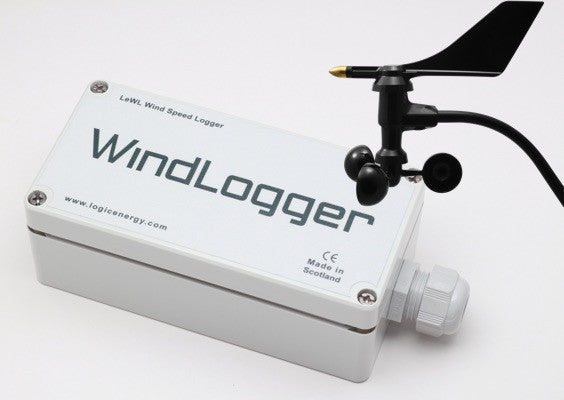

- Potentiometer type wind direction sensor, 1k - 20k ohms.
- Support for external temperature sensor
Serial port to interface with PC
- RS232 compatible for reading values while logging data
- Setup menu via serial port or via SD card
- 4800bps
- Custom sensor factor setup via RS232

Mechanical information

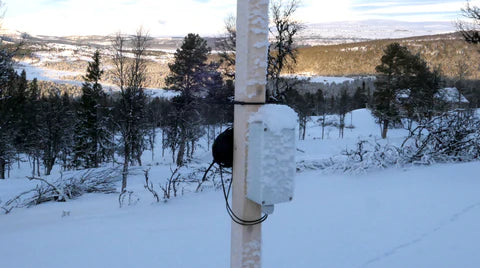

- Operating Temperature -40*C to + 70*C (check with us first for extreme weather applications)
- Sealed IP65 enclosure with gland for sensor wires
- Dimensions: 160x80x55mm
- Weight: 450gm including batteries

Trade Tariff/HS code for import/export
- 854290
PLEASE NOTE: This product has a lead time of 2-7 working days. Please contact us for any questions.

Customer Reviews

Based on 8 reviews Write a review

Customer Questions

Ask Question

Q: Can this wind logger measure temperature too?

A: Yes, it comes pre-configured to use this temperature probe: https://www.windlogger.eu/collections/sensors/products/temperature-thermistor We also recommend using a solar radiation shield if you intend to use the temperature probe under direct Sun light: https://www.windlogger.eu/products/radiation-shield-for-sensors

Q: Hello,I am interested in the LeWL setup for ecology research regarding wind-use in birds. I am wondering what the sensitivity is of the anemometer - for both high- and low- wind-speeds? Thank you,Kris

A: There're many many sensor options, it is probably best to contact us with more details about your requirements. In the meantime, have a look at these: https://www.windlogger.com/collections/sensors

Q: Hi guys,Do you have a MAC OS setup program for the LEWL by any chance?

A: Unfortunately not, however the setup is done using a simple text file that can be edited manually. When the new file is found by the data logger, then it loads its configuration. This process is described in the wind logger manual.

Q: Hi,How many days to reach buyer in Manila, Philippines. İ'd like to buy wind logger plus anemometer and wind vane.Thanks. Hope you response.

A: Hello, we usually dispatch within 2 working days. You should expect to have your items with you within a week. Feel free to contact us directly if you need more details.

Q: Is the sensor compatible with Anemometer Young?

A: Hello, it depends which model. You would need to use one with a pulse output.

Q: Hello,The wind direction angle recorded by these devices represents the direction the wind is blowing FROM? Does a 90º direction mean wind blows westward? Thank you, I purchased 4 anemometers of yours and they are just fine!

A: Yes, that is correct. The wind vane points where the wind is coming from, in the case of recording a 90º, the wind would be comfing from the East. 90º is East, and 270º would be West.

Q: I am interested in getting a new LeWL WindLogger, Could you tell me if the equipment has calibration report and what class it is?

A: Calibration certificates are done for the anemoeters (wind sensors). In this case, depending on the size of your project you may need a 1st Class MEASNET anemometer. Feel free to contact us with details, we will be happy to suggest the best option.
