WindLogger with 2 anemometers & wind vane

Added Add to Cart

Despatched in 12-15 working days

This product will be despatched within 10-15 working days
---- QUESTIONS AND ANSWERS ----

  • The new LeWL WindLogger has been manufactured since 2008. We have sold thousands of these little wind data loggers all over the world and they have an excellent reputation for their stability, accuracy and endurance.

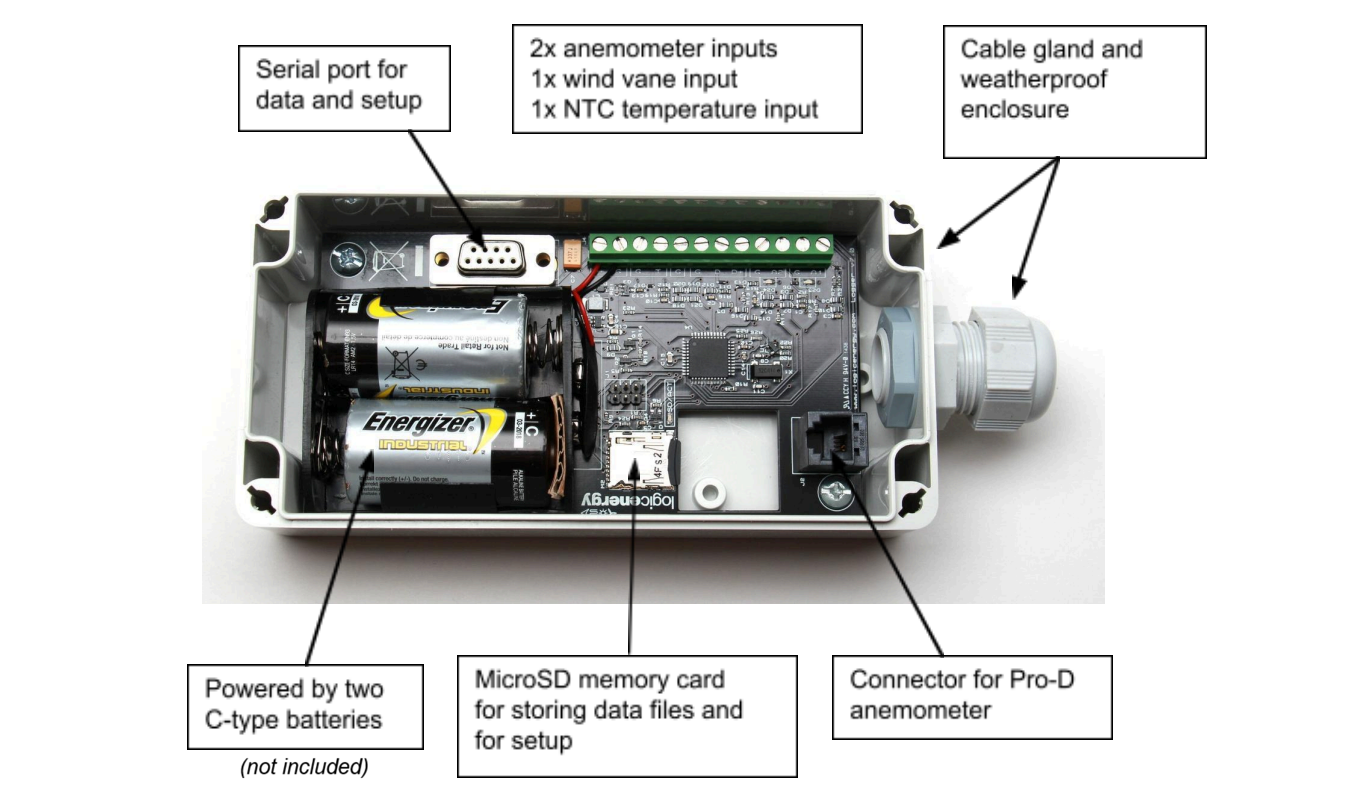

    The new WindLogger has been re-designed with major enhancements, thanks to the small wind enthusiastic community. We have listened to their feedback and have made several improvements: Simpler than ever installation, just plug the Pro-D anemometer into the internal 6P4C connector. If you use any other type of anemometer, that is ok too. You can connect it directly to its internal sensor input connection block. Automatic anemometer detection system. The new WindLogger will let you know if there's an anemometer connected and working before leaving site.

    Option for external temperature probe

    Built-in battery monitor

    Outstanding battery life up to 1 year at 1 minute logging interval or 2 years at 10 minutes intervals

    Designed in Scotland : Manufactured in the UK

  • Please Note: Price does not include VAT. For UK orders VAT is calculated at checkout. International orders are not subject to VAT.

  • Download manual and quick guide here or see F.A.Q. for WindLogger and videos

  • Specifications
    - Record wind speeds from up to 2 anemometers simultaneously - Average wind speed, gust wind speed and standard deviation (turbulence) and wind direction
    - Input for external temperature probe
    - Up to 1 year of battery life recording 1 minute data or up to 3 years battery life recording in 10 minutes intervals. (10 seconds available for testing purposes)> - Time-stamped data recorded to microSD card in standard CSV format for import into Excel or wind analysis software. Includes all sensor values, plus battery status. - Simple analysis tools included. (excel template for your manipulation or Java app)
    - Fully weatherproof IP65 rated enclosure

    SD card memory storage
    - Files in standard CSV ASCII format, archived into monthly files
    - Records average, standard deviation and maximum values
    - Data recorded with date and time stamp
    - microSD flash card FAT32
    Four sensor inputs
    - Log two anemometers at once (2 digital inputs)- Supports dry contact (volt-free) switch, Hall effect switch, open collector or 3V logic level signal Wind speed input
    - Potentiometer type wind direction sensor, 1k - 20k ohms.
    - Support for external temperature sensor
    Serial port to interface with PC
    - RS232 compatible for reading values while logging data
    - Setup menu via serial port or via SD card
    - 4800bps
    - Custom sensor factor setup via RS232

    Mechanical information
    - Operating Temperature -20C to +50C (check with us first for extreme weather applications)
    - Sealed IP65 enclosure with gland for sensor wires
    - Dimensions: 160x80x55mm
    - Weight: 450gm including batteries

    Trade Tariff/HS code for import/export
    - 854290

Customer Reviews

Based on 4 reviews Write a review

Customer Questions

Ask Question
0
Q: What is the closest interval this logger can record?

A: 10 seconds, we recommend this setup only for short periods of time as it generates a lot of data and consumes much more battery. The other options are 1 minute and 10 minutes recording. The sampling rate is discrete.

1
2
Q: We need to get longer cables since our installation will be on an existing 22m pole. Do you have longer cables available within this set, i.e. 25m (including reserve)? Thanks and best regards!

A: The standard cable is 13m long. We don't usually recommend extending the cable as it can be an entry point for water ingress if it has not been terminated right.
